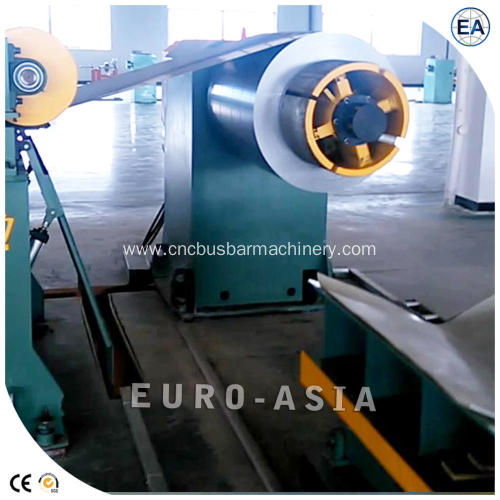

Functional features:
1. The Slitting line is arranged properly and all adopt electrical and hydraulic drive, convenient to operate and with high production efficiency.
2. Key electrical control elements, hydraulic elements, PLC and speed governors are top grade imported products. The speed of the slitting line is synchronous and the device runs stably and reliably.
3. The blade axis of the longitudinal Shearing machine is supported via main shaft bearing of the high precision machine tool so that the blade axis has low axial and radial run out.
4. The blade cutter adopts the locking mode through three point positioning via nuts with accurate size precision and firm locking.

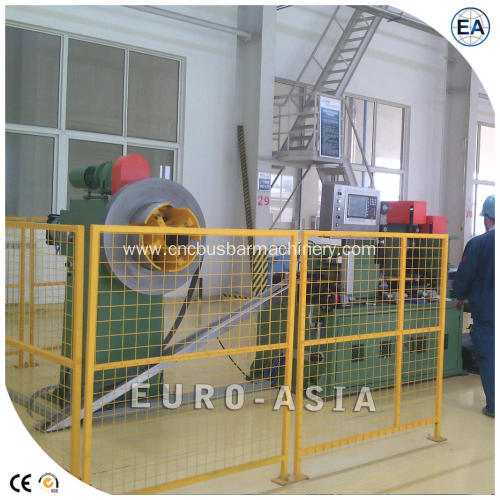

Purpose of the product:
This slitting line for transformer lamination is a special device to cut steel strip rolls into strips with a certain width. It is mainly used for decoiling cutting into strips and coiling of silicon steel sheets and thin steel plates and is applicable to processing and production of plate sheets for transformers, motors and transformers.

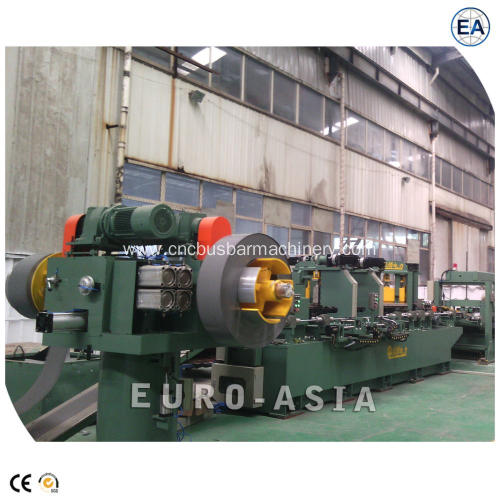

Flow chart
1. Decoiler---2. Decoiling buffer bridge---3. Guiding unit---4. Shears for cutting front end materia---5. Rolling shear unit---6.Cover of movable pit---7. Buffering device---8. Tension table---9. Recoiling buffer bridge---10. recoil---11.Hydraulic station---12. Control cabinet---13. The main operation platform---14. Operating table
Flow chart
Model
Paramet | ZJ-1000 | ZJ-1250 |
| Material | silicon strip,stainless steel,copper coil,aluminum coil |
| Inner diameter of the coil (mm) | ¢500 |
| Width of coil (mm) | 1000 | 1250 |
| Weight of coil (t) | 3 | 5 | 5 | 10 |
| Strip Thickness (mm) | 0.20-0.35,0.35-0.5 |
| Strip width (mm) | 40-1250 |
| Shearing speed (m/min) | 0-80 | 0-120 | 0-80 | 0-120 |
| Error of shearing width (mm) | ±0.1 |
| Shearing burr (m/min) | ≤0.02 |
| Max winding diameter (mm) | ¢1000 | ¢1200 |
| Straightness deviation (mm/m) | ≤0.2/2 |
| Number of strips | 12 |
| Installation Power (kw) | Approximately 30/40 | Approximately 40/50 |
| Outline Dimension L*W*H (m) | Approximately 13×5.5×2 | Approximately 13×5.5×2 |
