Busbar Processing Shearing Punching Bending Machine

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: BM603-S-3

Brand: Euro-Asia/Gaoji

Type: High-Speed Punching Machine

Punch Shape: Semi-Open Punch

Slider Movement: Double Action

Slider Drive Mechanism: Screw Press

Controlling Mode: CNC

Automatic Grade: Automatic

Power Source: Hydraulic Pressure

Precision: High Precision

Certification: ISO 9001

Condition: New

Weight: 1800Kgs

Supply Ability & Additional Information

Packaging: Seaworthy packing

Productivity: 200 Sets Per Month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 1000 Sets Per Year

Certificate: ISO

HS Code: 8462

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Seaworthy packing

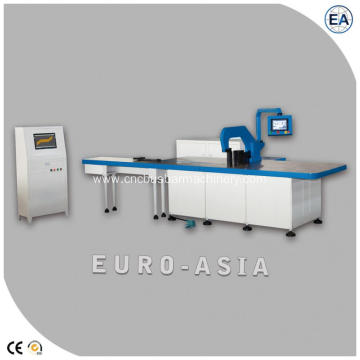

The multifunction Busbar Processing Machine is the compunter controlled equipment, specially used for busbar processing, it can be used by Metal Cutting Machine,Processing Punch Machine and Processing Bender Machine.

Advantages:

Muti-functional Busbar Processing Machine is a self-developed new product of our company.
1.The Shearing Unit adopts overall structure, its design is new and unique, proper stress,
which guarantee long time usage without deformation.
2.The Bending Unit adopts overall structure,angular CNC method, operation is simple and
high accurate;
3.The machine adopts double-layer platforms design scheme,three units can be operated
at the same time.
4.The machine is equipped with auto refueling and draining system.
5.The machine adopts stainless steel oil tank,so no corrosive degeneration of the hydraulic oil and extend the service life of hydraulic oil and each sealing part.

6.PLC controlling, stable and reliable.

Metal Cutting Machine

Configuration of the machine
Work Bench Dimension (mm)	Machine Weight (kg)	Number of Motors	Total Motor Power (kw)	Working Voltage (v)	Number of Hydraulic Units (MPa)	Control Mode
Layer Ⅰ:1500*1200	1280	3+1	11.37	380	3*31.5	PLC+CNC angle bending
Layer Ⅱ:840*370

Main technical parameters:
Description	Material	Machining W*H (mm)	Max Punched Hole	Max Output Force (kn)
Punching unit	Copper/Aluminum	16*160	Ø32	600
Shearing unit	Copper/Aluminum	Punching and shearing:12160 Simple shearing:15160		350
Bending unit	Copper/Aluminum	Level bending:15160 Vertical bending:12120		350

Packing and delivery

1. Packing details

1) Applying Anti-Rust Oil

2) Covering with stretch film

3) Covering aluminum air bag

4) Vacuuming air bags

5) Boxing all the pallet

6) Loading to the container

2. Delivery

Quantity (Sets)	1	2	>2
EST. Time (Days)	60	90	To be negotiated

Reference certificate

Processing Bender Machine

Looking for ideal Metal Cutting Machine Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Processing Punch Machine are quality guaranteed. We are China Origin Factory of Processing Bender Machine. If you have any question, please feel free to contact us.
