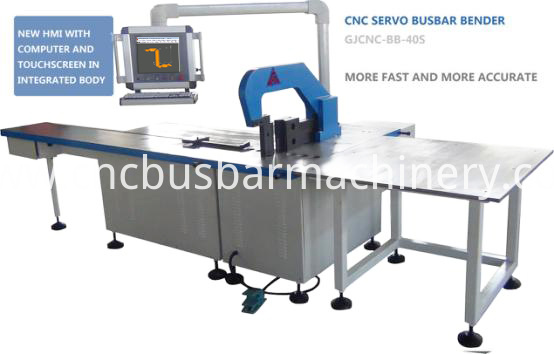

High Speed Busbar Servo Bending Machine

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: CNC-BB-S

Brand: Euro-Asia

Certification: CE

Suitable for: Aluminum

Condition: New

Automation: Automatic

Type: Hydraulic Bending Machine

Total Power: 7.2KW

Total Weight: 2700KGS

Nominal Force: 400KN

Max Bending Stroke: 250mm

Stroke Of Side Striker: 2000mm

Supply Ability & Additional Information

Packaging: Seaworthy packing

Productivity: 20Sets/Month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 200Sets/Year

Certificate: ISO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Seaworthy packing

Products Description:
1 High Speed Busbar Servo Bending Machine adopts unique large closed type bending structure.
2. Automatic Machine with 3D Software also has the convenience of the open type bending.
3. Servo Bending Machine possesses the premium property of the closed type bending.
4. The bend unit (Y-axis) of CNC bending machine has the function of angle error compensation, its bending accuracy can meet the high performance norm.
5. When it is in vertical bending, CNC bending machine has the function of auto clamping and release, the processing efficiency is greatly improved compared with manual clamping and release.
Advantages:
1.Closed Bending Structure --Using a precision linear guide to ensure fabricating accuracy.
2.GJ3D Software Programming --Accurately calculating the punching position by 3D graphics.
3.Touch Screen -- Allowing the easy setting of die parameters and the operation of equipment.

4. High-Speed-- Operation System Guarantee high precision and fast efficiency.

Good Quality Machine

Main technical parameter:

Specification:

Item	Unit	Parameter
Nominal Force	KN	400
Bender Accuracy	Degree	±0.3°
Max bending Stroke	mm	250
Stroke of side striker	mm	2000
Max Moting Speed of Side striker(X Axis)	m/min	15
Bending Head(Y Axis)	m/min	Fastest 5; low: 1.25
Min inner Width of U-shape bend	mm	40(Note:Please consult us for smaller dimensions)
Max bending angle	degree	90
Level bending (W*H)	mm	200X15
Vertical Bend(W*H)	mm	125×15
Total power	kw	7.2
Main machine dimension:L*W	MM	4150X1590
TOTAL Weight	kg	2700

Configuration:

Control Section
Serial No.	Name	Brand Name
1	Programmable Control	OMRON
2	Sensor	Telemacanique From Schneider
3	Control Button	OMRON
4	Touch Screen	OMRON
5	Computer	Lenovo
6	AC Contactors	ABB
7	Circuit Breaker	ABB
8	Servo Motors	YASKAWA(Japan)
9	Servo Drivers	YASKAWA(Japan)
10	Control software and Three-dimensional	Gaoji Busbar Processing System(GJ3D)
10	computer-aided design	Gaoji Busbar Processing System(GJ3D)
Transmission System
Serial No.	Name	Brand Name
1	Precision Straight rail	Taiwan HIWIN
2	Precision Ball Screw	Taiwan HIWIN
3	Bearing	Japan NSK

Packing details

1) Applying Anti-Rust Oil

2) Covering with stretch film

3) Covering aluminum air bag

4) Vacuuming air bags

5) Boxing all the pallet

6) Loading to the container

Packaging Shipping Customer

Looking for ideal Good Quality Machine Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Automatic Machine with 3D Software are quality guaranteed. We are China Origin Factory of Hydraulic CNC Machine. If you have any question, please feel free to contact us.
