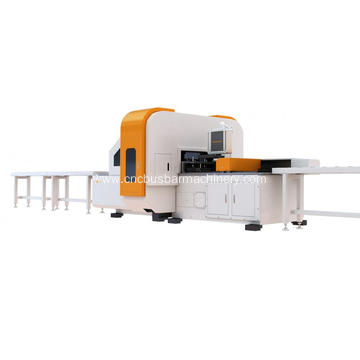

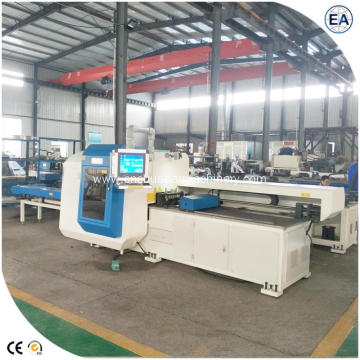

CNC Bus Arc Chamfering Milling Machine for Copper

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: EMAC-XT

Brand: Euro-Asia

Cutting Material: Aluminum

Automatic Grade: Automatic

Customized: Customized

Layout: Horizontal

Power Source: Pneumatic

Cutting Mode: Other

Weight: 2300 KGS

Supply Ability & Additional Information

Packaging: Seaworthy packing

Productivity: 100 Sets Per Month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 700 Sets Per Year

Certificate: ISO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Seaworthy packing

Patented Machinery from Euro-Asia, Omron CNC Control !!!
High Precision! High Efficiency!

Best Way to Avoid High Voltage Tip Discharge

Advantages:
1.Using automatic technology, making the pressure head on the point.
2.With a supercharger, it can make the workpiece more stable and better processing surface.
3.Adopt international standards BT4o knives, change tools easy with good rigid high accuracy.
4.High accurate ball screw transmission and straight guide to guarantee high precision& efficiency.
5.The adopted component is world-famous,with long service and good quality.
6.Operating software is GJ3D, it demonstrates the whole process of punching, hearing and bending.

Main technical parameter

Description		Unit	Parameter
Processing Capacity	Width	mm	30-140
	Mini Length	mm	280
	Thickness	mm	3-15
Main Shaft	Motor Power	KW	7.5
	Speed of spindle	R/min	1000
	Max Torque	N.m	62
	Tool Handle Model		BT40
	Tool parameter(diameter)	mm	100
Feeding Section	Stroke of X-axis	mm	250
	Stoke of Y-axis	mm	350
	Servo power	Kw	2x1.5
	Torque of Feeding Motor	N.m	8.34
	Feeding Speed	mm/min	1200
	Position Accuracy	mm	0.03
	Diameter of Ballscrew	mm	Φ32
	Pitch of Ballscrew	mm	10
Main Machine	Air Source	Mpa	0.5-0.9
	Total Power	Kw	11.5
	Working Table Size	mm	350x900
	Diameter L*W	mm	2500x2000
	Total Weight	KG	2300

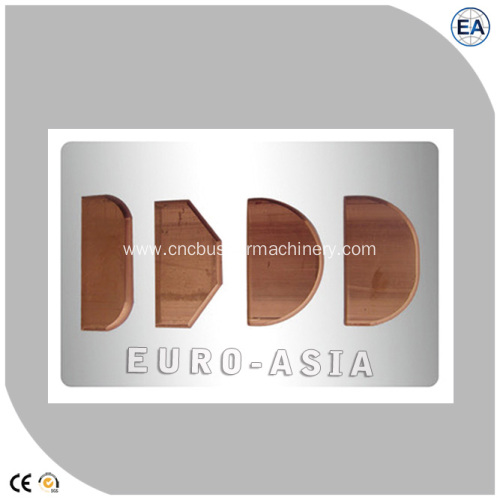

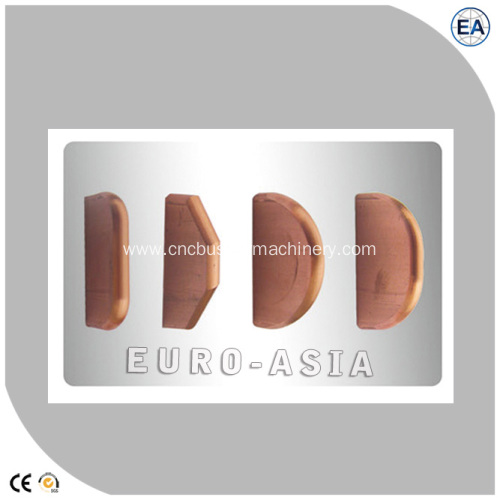

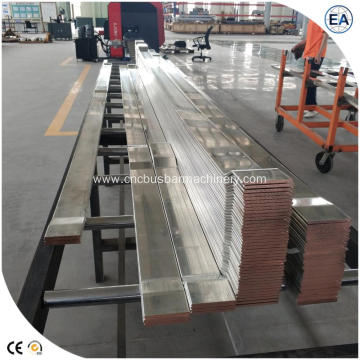

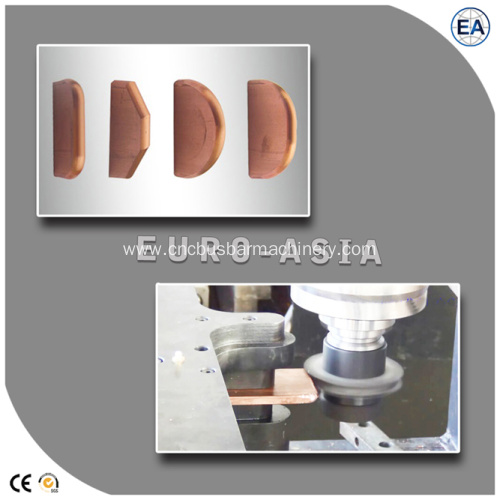

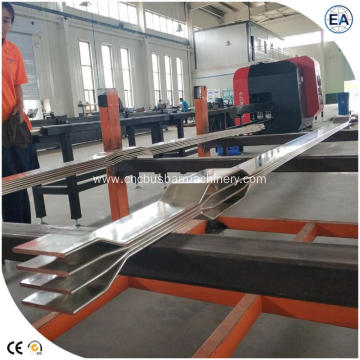

Finished products show

Customer visit our factory

Packaging Shipping Customer

Looking for ideal Chamfering Milling Machine Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Hydraulic Milling Machine are quality guaranteed. We are China Origin Factory of Automatic Chamfering Machine. If you have any question, please feel free to contact us.
