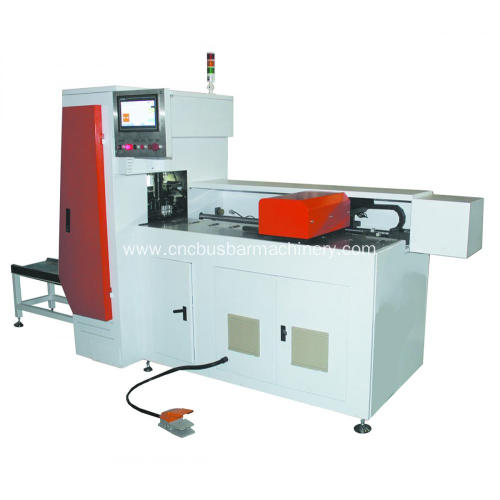

Hydraulic Bus Duct Connection Row Machine Centre
  • Hydraulic Bus Duct Connection Row Machine Centre
  • Hydraulic Bus Duct Connection Row Machine Centre
  • Hydraulic Bus Duct Connection Row Machine Centre
  • Hydraulic Bus Duct Connection Row Machine Centre
  • Hydraulic Bus Duct Connection Row Machine Centre
  • Hydraulic Bus Duct Connection Row Machine Centre

Hydraulic Bus Duct Connection Row Machine Centre

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF,EXW
Min. Order:
1 Set/Sets
Transportation:
Ocean
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: CB

Brand: Euro-Asia

Application: Metal

Process Usage: Metal-Cutting CNC Machine Tools

Movement Method: Linear Control

Control Method: Closed-Loop Control

Numerical Control: CNC/MNC

Processing Precision: ±0.09mm

Performance Classification: High-End CNC Machine Tools

Certification: ISO 9001

Condition: New

Supply Ability & Additional Information

Packaging: Seaworthy packing

Productivity: 20Sets/Month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 200Sets/Year

Certificate: ISO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Seaworthy packing
Advantages:

1.This product is mainly used for making busbar connection slot connected row, and it is to automate busbar connection line of punching, stretching and shearing with high production.
2. Working Unit: Hydraulic drive, stable and reliable.

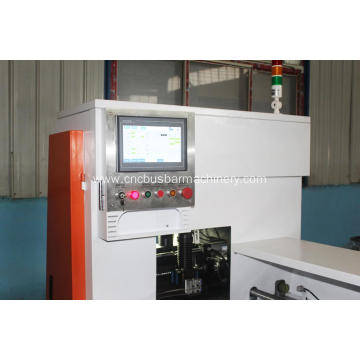

3.Touch Screen: Human-computer interface, the operation is simple and demonstrate real-time the operation status of the program, the screen can show the alarm information of the machine, and it set the basic die parameters and control the machine operation.

4.The machine adopts high accurate ball screw transmission and straight guide to guarantee high precision and fast efficiency.

5.The imported component is world-famous, with long service and good quality.

Cb 20

Main technical parameter

Description Unit Parameter
Nominal Force Punching unit kN 200
Shearing 200
Max positioning speed of X axis m/min 30
Operating stroke mm 20
Stroke of X-axis mm 1200
Blowing frequency Punching unit Time/min 30
Punching 30
Hole pitch control accuracy mm/m <±0.1
Sheet processing range L mm ≤6000
W 120~140(customizable)
H 3~4.5(customizable)
Max hydraulic pressure MPa 31.5
Total power kW 6
Main machine dimension:L×W mm 2330×1660
Total weight kg 2200

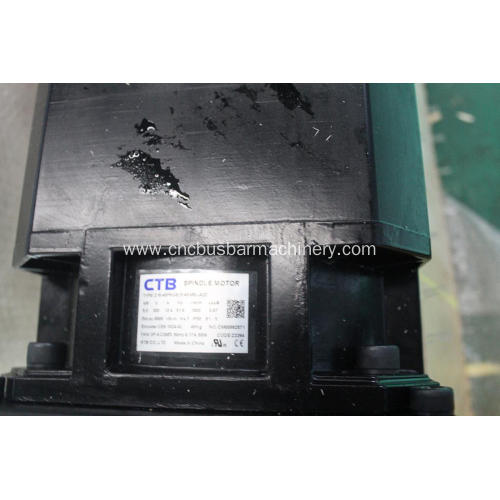

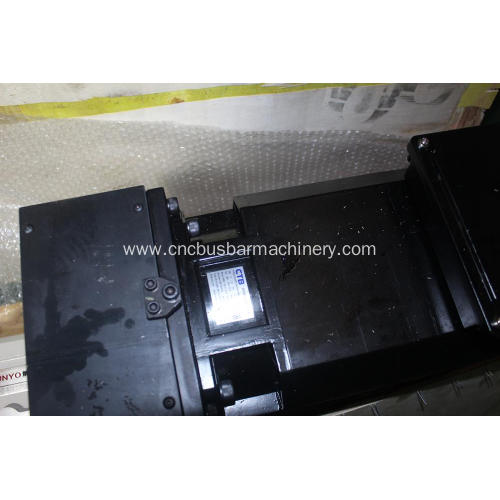

Product details:

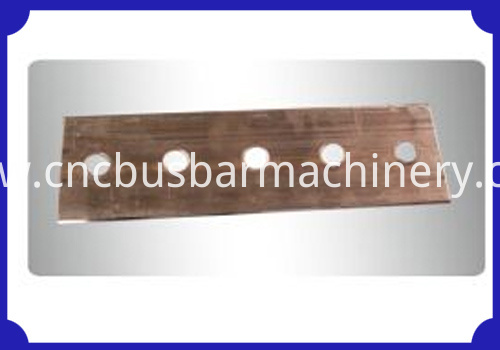

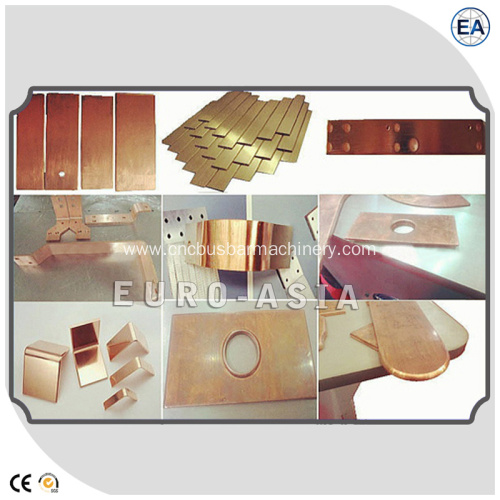

finished productsConnection Machine for Bus Ductproducts show

Machine Certificate


CustomerPackaging Shipping


Looking for ideal Connection Row Machine Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Bus Duct Row Machine are quality guaranteed. We are China Origin Factory of Connection Machine for Bus Duct. If you have any question, please feel free to contact us.
