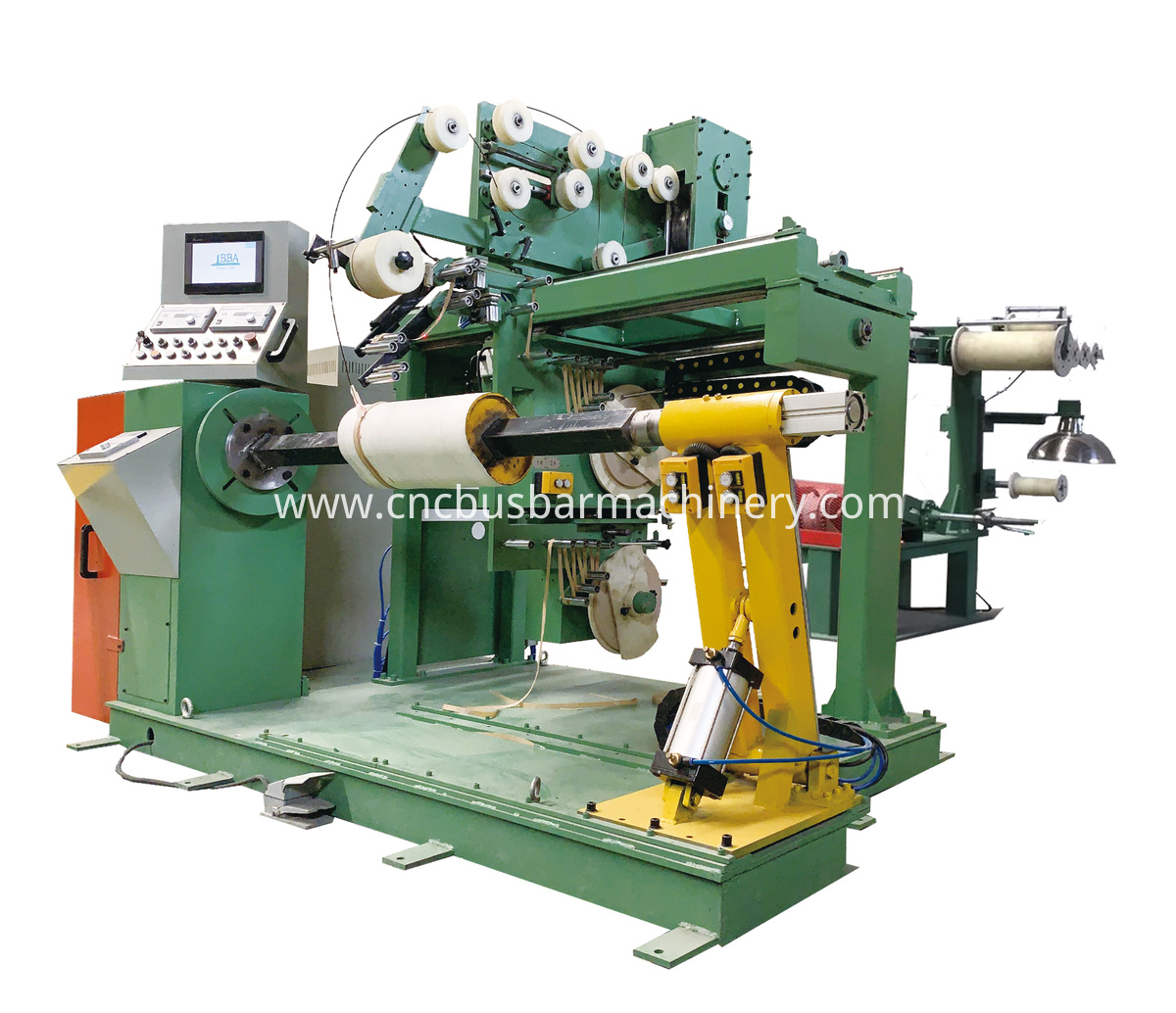

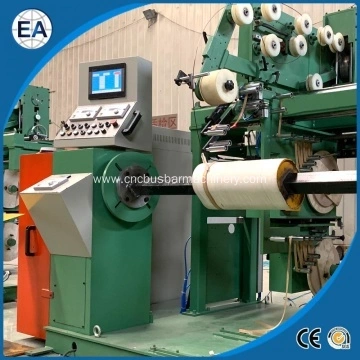

Functional Features of the transformer coil wire Winding machine:
1) Suitable for both round and flat wires
2) Central Height: 950mm
3) PLC control,servo wiring
4) Suitble for both round and rectangular coils

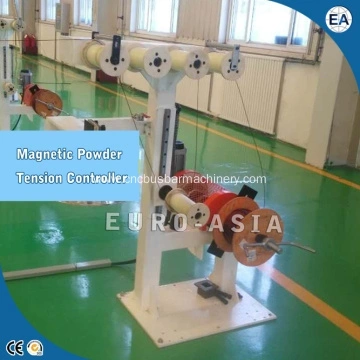

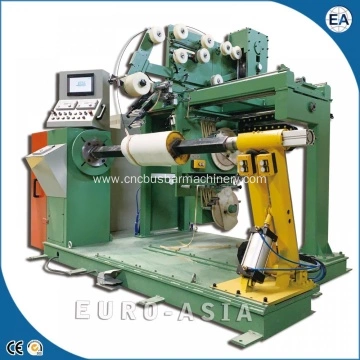

5) Equipped with interlaminar insulation automatic feeding device
6) Equipped with tensioning pay-off device
Technical parameter
Model
Paramet | ZRX-600 | ZRX-800 | ZRX-1100 |
| Height of the coil | ≤500mm | ≤800mm | ≤1100mm |
| Outer diameter of the coil | ≤¢600mm | ≤¢800mm | ≤¢900mm |
| Inner diameter of the coil | ≥¢80mm | ≥¢80mm | ≥¢80mm |
| Speed regulation mode | Stepless variable speed | Stepless variable speed | Stepless variable speed |
| Operating speed | 0-375r/min | 0-375r/min
220r/min | 0-375r/min
220r/min |
| Wire specification | 2 flat conductors≤3*12mm
Lacquered Wire:0.3mm-3mm | 2 flat conductors≤3*12mm
Lacquered Wire:0.3mm-3mm | 2 flat conductors≤3*12mm
Lacquered Wire:0.3mm-3mm |
| Operating torque | ≤300N/M | ≤300N/M | ≤300N/M |
| Center height | 850mm | 850mm | 850mm |
| Center-to-center distance of reel | 250-800mm | 250-1100mm | 400-1300mm |

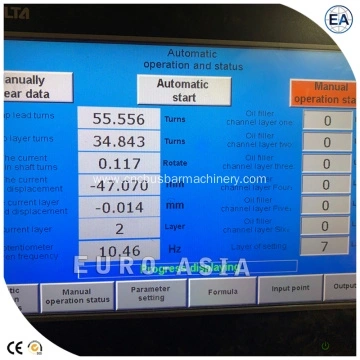

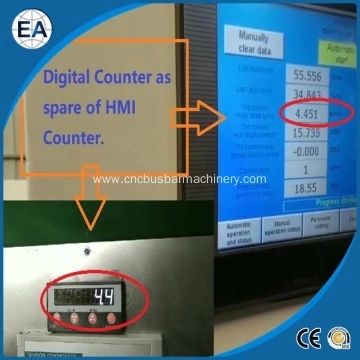

| Electrical control system | Touch screen | Touch screen | Touch screen |
| Winding reel | Square shaft 40*40 | Square shaft 40*40 | Square shaft 50*50 |
| Rectangular coil diagonal length | ≤700mm | ≤900mm | ≤1100mm |
| Workpiece weight | ≤500KG | ≤800KG | ≤1000KG |
| Automatic wire aarraying function | Min. Space of wire diameter adjustment 0.01mm | Min. Space of wire diameter adjustment 0.01mm | Min. Space of wire diameter adjustment 0.01mm |
Packing details
1) Applying Anti-Rust Oil
2) Covering with stretch film
3) Covering aluminum air bag
4) Vacuuming air bags
5) Boxing all the pallet
6) Loading to the container
Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D; team and strict & scientific management system.
