Transformer Wire Coil Winding Machine
  • Transformer Wire Coil Winding Machine
  • Transformer Wire Coil Winding Machine
  • Transformer Wire Coil Winding Machine

Transformer Wire Coil Winding Machine

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF,EXW
Min. Order:
1 Set/Sets
Transportation:
Ocean
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: ZRX-800

Brand: YBBA

Function: Abrasion Resistance

Certification: CE

Demoulding: Automatic

Condition: New

Warranty: 12 Months

Automatic Grade: Automatic

Installation: Desktop

Driven Type: Electric

Mould Life: >1,000,000 Shots

Square Shaft: Customized

Supply Ability & Additional Information

Packaging: Seaworthy packing

Productivity: 20sets/month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 200SETS/Year

Certificate: ISO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Seaworthy packing

Product feature:

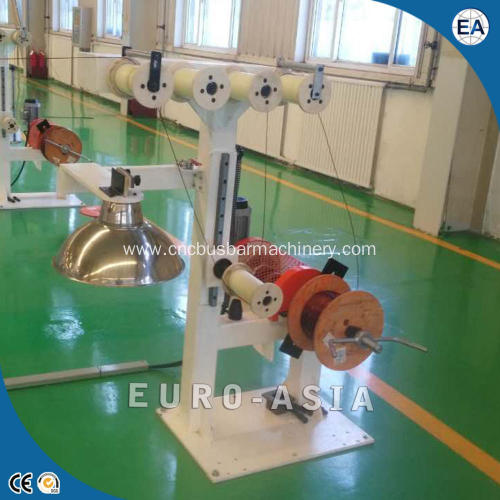

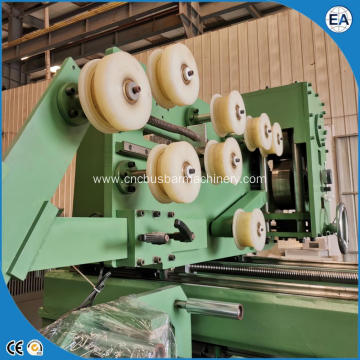

Coil winding equipment consists of the winding unit, Winding machine displacement device, the important point is the layer insulation auto-displacement trapezoid insulating unit, Automatic Wire Winding Machine use the round wire/flat wire tension - adjustable pay-off rack, the pneumatic system, the PLC control and servo motor system and touch screen HMI etc. Featured by high automation level, complete functions and strong power, it guarantees the axial tightness and radial tightness, and auto Coil Winding Machine is especially suitable for rectangular coils.

Winding Machine

Technical Parameter

Model
Paramet 		ZRX-600 ZRX-800 ZRX-1100
Height of the coil ≤500mm ≤800mm ≤1100mm
Outer diameter of the coil ≤¢600mm ≤¢800mm ≤¢900mm
Inner diameter of the coil ≥¢80mm ≥¢80mm ≥¢80mm
Speed regulation mode Stepless variable speed Stepless variable speed Stepless variable speed
Operating speed 0-375r/min 0-375r/min
220r/min 		0-375r/min
220r/min
Wire specification 2 flat conductors≤3*12mm
Lacquered Wire:0.3mm-3mm 		2 flat conductors≤3*12mm
Lacquered Wire:0.3mm-3mm 		2 flat conductors≤3*12mm
Lacquered Wire:0.3mm-3mm
Operating torque ≤300N/M ≤300N/M ≤300N/M
Center height 850mm 850mm 850mm
Center-to-center distance of reel 250-800mm 250-1100mm 400-1300mm
Electrical control system Touch screen Touch screen Touch screen
Winding reel Square shaft 40*40 Square shaft 40*40 Square shaft 50*50
Rectangular coil diagonal length ≤700mm ≤900mm ≤1100mm
Workpiece weight ≤500KG ≤800KG ≤1000KG
Automatic wire aarraying function Min. Space of wire diameter adjustment 0.01mm Min. Space of wire diameter adjustment 0.01mm Min. Space of wire diameter adjustment 0.01mm

Packaging ShippingCustomer



Looking for ideal Winding Coil Machine Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Automatic Winder Machine are quality guaranteed. We are China Origin Factory of Coil Winding Equipment. If you have any question, please feel free to contact us.
