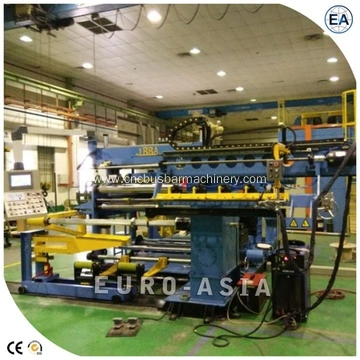

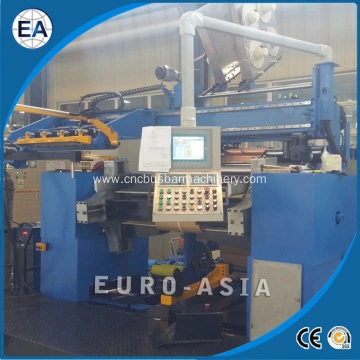

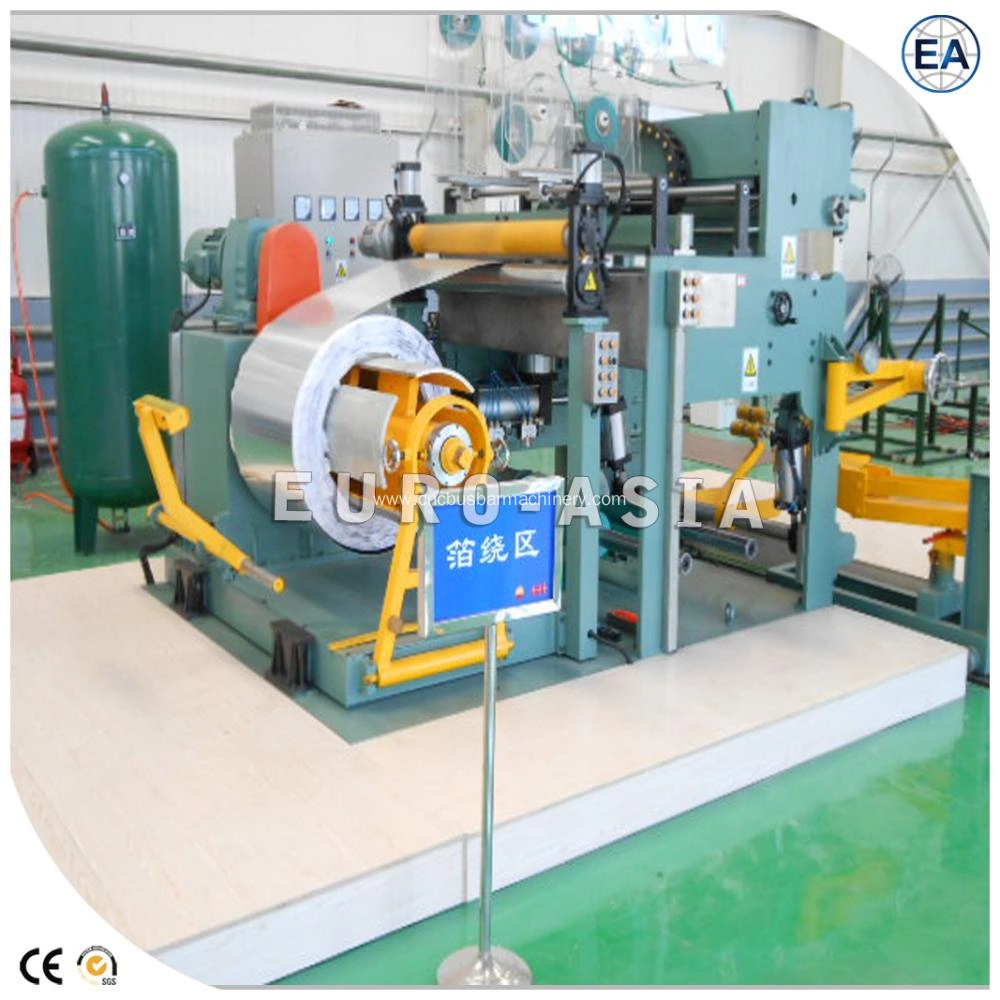

Functional feature:
1. Automatic transformer Foil Winding Machine adopts and electrical servo deflection correction system to achieve manual/automatic adjustment of the foil position more conveniently and reliably.

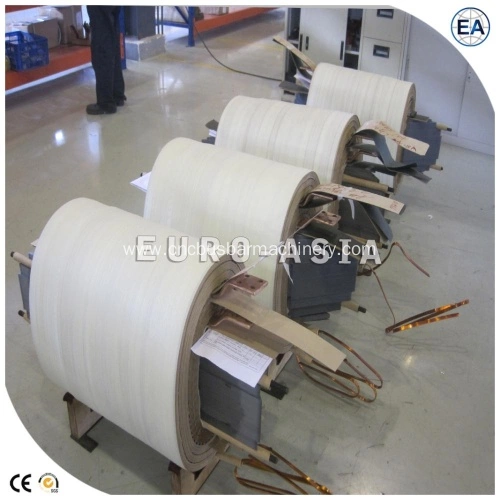

2. The foil Winding machine adopt an advanced electrical control technology of constant tension to control the tension of the foil and the inter layer insulation, with the features such as quantitive, accurate and convenient control of the tension no mechanical friction. The required tension can be maintained for forward winding, stop and backward winding, ensuring compact coils.

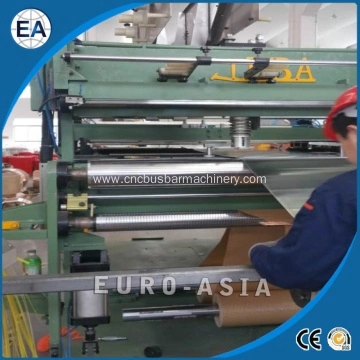

3. The inter layer insulation adopts a cantilever mechanism, convenient for feeding and the mechanism can be pulled out as a whole without guide rails outside the body.
4. Automatic welding mechanism and roll shearing mechanism adopt ball screws and linear guide rails for drive, ensuring the service life and accuracy of the device.
5. This device first adopts the all-in-one sing frame, solving problems such as few coil urns and deflection correction lag.

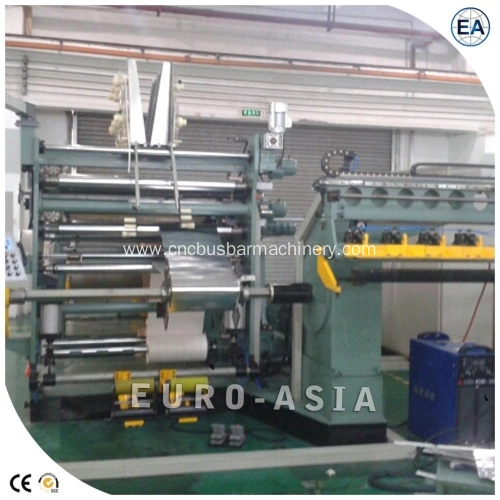

Main Technical parameters of foil winding machine
The Automatic welding mode is Dc pulse argon arc welding/cold pressure welding.
Model
Paramet | BRJ-600 | BRJ-800 | BRJ-1100 | BRJ-1400 | BRJ-1600 |
| Foil width of coil (mm) | ≤600 | ≤800 | ≤1100 | ≤1400 | ≤1600 |
| Outer diameter of the coil (mm) | 120-600(700) | 120-600(850) | 150-800(1000) | 150-900(1300) | 200-1100(1500) |
| Foil thickness (mm) | 0.3-2.5single and double layers |
| Winding speed | 0-30r/min | 0-30r/min | 0-20r/min/0-30r/min | 0-20r/min | 0-17r/min |
| Max tension of foil (single layer) | ≤6KN | ≤8KN | ≤10KN | ≤13KN | ≤15KN |
| Automatic welding model | DC Pulse Argon arc welding/cold pressure welding |
| Deflection adjusting accuracy of foil | ≤±0.5mm | ≤±0.5mm | ≤±0.5mm | ≤±0.5mm | ≤±0.5mm |
| Max Tension of interlayer insulation | ≤0.2KN | ≤0.2KN | ≤0.4KN | ≤0.4KN | ≤0.4KN |
| Installation capacity | 15KW/25KW | 20KW/30KW | 25KW/35KW | 40KW | 45KW |
