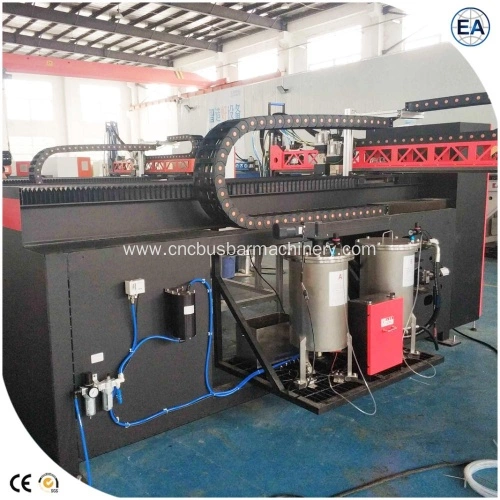

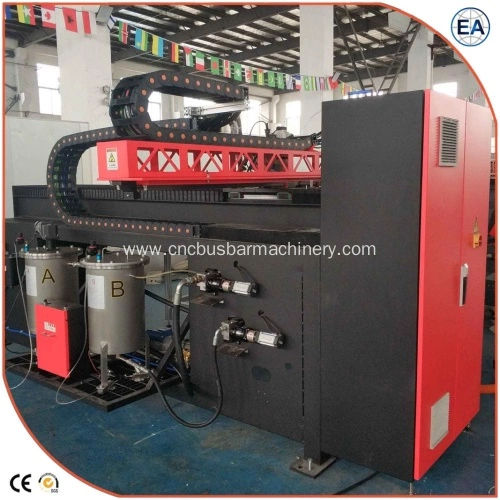

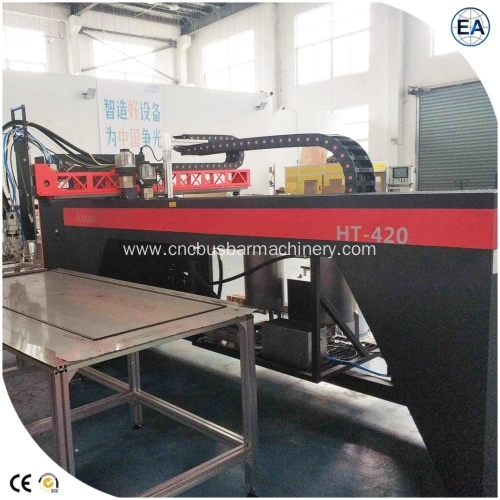

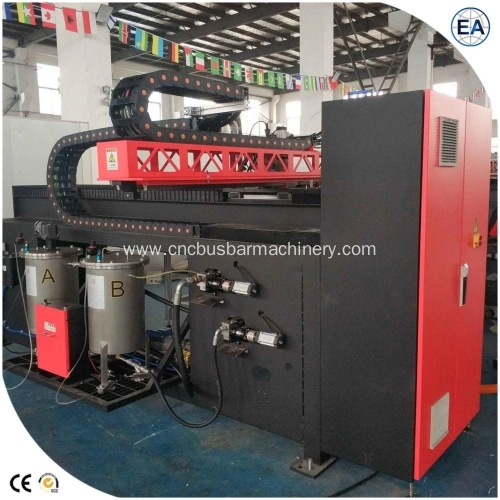

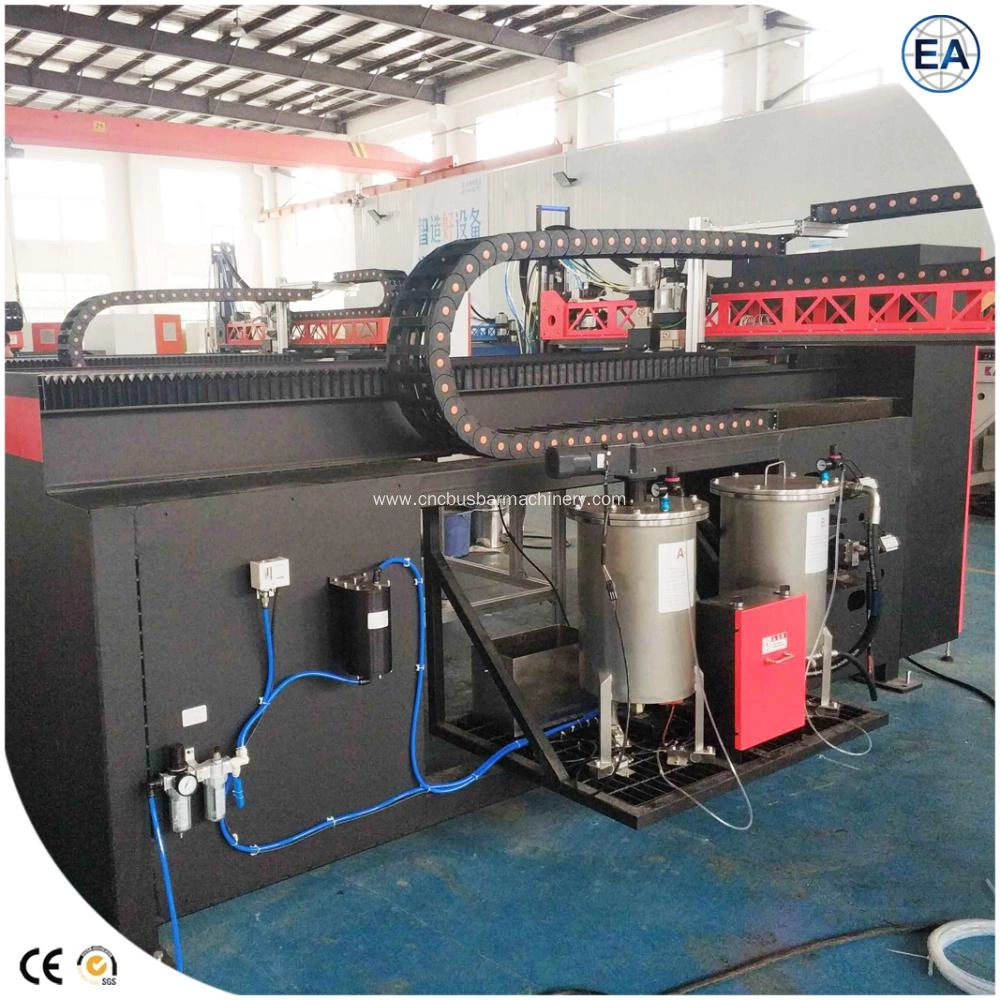

PU Foam Gasket Making Machine
  • PU Foam Gasket Making Machine
  • PU Foam Gasket Making Machine
  • PU Foam Gasket Making Machine
  • PU Foam Gasket Making Machine
  • PU Foam Gasket Making Machine
  • PU Foam Gasket Making Machine
  • PU Foam Gasket Making Machine

PU Foam Gasket Making Machine

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF,EXW
Min. Order:
1 Set/Sets
Transportation:
Ocean
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: HT420

Brand: Ecoseal

place of origin: China

status: New

Processing type: Foaming Machine

Product Category: Pet Strap

Certification: Ce, CE

warranty period: 1 Year

Core selling point: Automatic, Multifunctional, Competitive Price, High-Accuracy, High Safety Level, Energy Saving, Sustainable, High Productivity, Easy To Operate, Flexible Manufacturing

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where to provide local services (in which countries are there overseas service outlets): None

Showroom location (in which countries are there sample rooms overseas): None

Applicable industry: Manufacturing Plant

Marketing type: Hot Product 2019

Mechanical test report: Provided

Video factory inspection: Provided

Core component warranty period: 1 Year

Core components: Motor, Plc

Customized: Yes

Precision: High Precision

Condition: New

Warranty: 12 Months

Automatic Grade: Automatic

Installation: Desktop

Driven Type: Electric

Supply Ability & Additional Information

Packaging: Standrad

Productivity: 2Sets/Month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 200Sets/Year

Certificate: ISO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Standrad

Good Reasons For Choosing our Foam Sealing Machine :

1. Foam Sealing Machine has temperature holding system- no need air conditioner room

2. Tapping water cleaning system of Foam Sealing Machine-no need chemical cleaning liquid
3. Foam Sealing Machine owns patented Anti-blocking gluing nozzle-no need extra nozzle cleaning expense


Foam Sealing Machine Working Principle:


Foam Sealing Machine Working Principle

1.Mixing time:The time when components A and B are mixed
2.Reaction time: The time when the foam begins to react with each other (about 15-60 seconds later)
3.Foaming time: The time when the volume starts to expand and then foams into seals (about 15-180 seconds later)
4.Drying time : Sealing strip at room temperature (25 ºC) under the condition of its surface has no sticky, and not damage to the surface after hitting time (about 2-20 minutes later)
5.Available time:The time when the seal can be compressed or the parts can be assembled (about 20-12 hours later)


Foaming Machine HT-420 Technical Specifications:

Type Type HT-420 (Standard) HT-420C (Customized) HT-420HC (High Standard) HT-420Silicagel (Standard) HT-321 (Standard) HT-321HC (high Standard)
Composition Composition polyurethane polyurethane polyurethane silicagel polyurethane polyurethane
Options Dual Dual Dual Dual Dual Dual
System /Control OS HT-420 /WindowsXP HT-420 /WindowsXP HT-420 /WindowsXP HT-420 /WindowsXP HT-321 /WindowsXP HT-321 /WindowsXP
Interface TS TS TS TS TS TS
Operation TS/KB/BT TS/KB/BT TS/KB/BT TS/KB/BT TS/KB/BT TS/KB/BT
Control INVT INVT INVT INVT INVT INVT
Screen 15" 15" 15" 15" 15" 15"
Blender Blender HT600 HT600 HT600 HT625 HT500 HT500
Width of Sealant 8-30mm 8-30mm 8-30mm 8-30mm 2-10mm 2-10mm
Cleaning Method High Pressure Water High Pressure Water High Pressure Water Solvent High Pressure Water High Pressure Water
Mixing Scale(A:B) 10:1 10:1 10:1 1:1 10:1 10:1
Dosing Pump Dosing Pump Barmag Barmag Barmag Barmag Barmag Barmag
Size A3cc/r B0.6cc/r A3cc/r B0.6cc/r A3cc/r B0.6cc/r A1.2cc/r B1.2cc/r A0.6cc/r B0.1cc/r A0.6cc/r B0.1cc/r
Size/ Travel Size(L*W*H) 4100×2700×2100mm Customized 3700×2700×2100mm 4200×2700×2100mm 2000×1800×1900mm 2000×1800×1900mm
Travel(X*Y*Z) 2300×1250×200mm Customized 2300×1250×200mm 2300×1250×200mm 1000×8000×200mm 1000×8000×200mm
Material Tank Structure Air Pressure Tank Air Pressure Tank Air Pressure Tank Air Pressure Tank/Pressure plate pump tank Air Pressure Tank Air Pressure Tank
Volume A=40L B=40L A=40L B=40L A=40L B=40L A=40L B=40L A=40L B=40L A=40L B=40L
Agitation Only A Only A Only A defoaming Only A Only A
Feeding Hand/ Auto Hand/ Auto Hand/ Auto Hand/ Auto Hand/ Auto Hand/ Auto
Feeding Station Option Option Option Option Option Option
Inflation Hand/ Auto Hand/ Auto Hand/ Auto Hand/ Auto Hand/ Auto Hand/ Auto
Frame Structure Three axis linear manipulator Three axis linear manipulator Three axis linear manipulator Three axis linear manipulator 4 axis linear manipulator (Gantry) 4 axis linear manipulator (Gantry)
Travel Speed 0-250mm/s 0-250mm/s 0-250mm/s 0-250mm/s 0-250mm/s 0-250mm/s
Guide Rail HIWIN HIWIN THK HIWIN HIWIN HIWIN
Gear Rack/lead Screw China mainland made China mainland made Gabini China mainland made HIWIN HIWIN
Servo Motor Panasonic Panasonic YASKAWA Panasonic Panasonic Panasonic
Reducer China mainland made China mainland made(cantilever) Mordor China mainland made ─ ─
Working Table Structure ALU Extrusion ALU Extrusion alternate/up-down/customized ALU Extrusion unibody unibody
Size 2000×1000mm 2000×1000mm 2000×1000mm 2000×1000mm 2000×1000mm 2000×1000mm
Power Power 3×380V 3×380V 3×380V 3×380V 3×380V 3×380V
Power Rate 5.5kw 5.5kw 5.5kw 5.5kw 5kw 5kw
Air Dry Compressed Air ≥6bar ≥6bar ≥6bar ≥6bar ≥6bar ≥6bar
Water Clean city Water tap water tap water tap water ─ tap water tap water
Solvent Solvent ─ ─ ─ Solvent ─ ─
Application Cabinets/Filter/Auto/Electronics … Cabinets/Filter/Auto/Electronics … Cabinets/Filter/Auto/Electronics … Cabinets/Filter/Auto/Electronics / electric heating machine Filter/Auto/Electronics … Filter/Auto/Electronics …


The Produced Samples By Foam Sealing Machine:

The Producted Samples By Foam Sealing Machine 1

Certifications & Patents For Our Foam Sealing Machine:

Certifications & Patents of Foam Sealing Machine

Our Service For Foaming Machine:

1.Inquiry will be replied within 2 hours.

2. All the way tracking service offered from placing order to delivery.

3.We can provide professional guide installation.

4.One year warranty and all round after sale service.

5.Customized design and flow chart are available for our clients.

6.Independent R&D; team and strict & scientific management system.
