PU Foam Gasket Extruder for Cabinet

$45000

1-0
Set/Sets
$65000

≥1
Set/Sets

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: HT-420C

Brand: Ecoseal

place of origin: China

status: New

Processing type: Foaming Machine

Product Category: Pet Strap

Certification: Ce

warranty period: 1 Year

Core selling point: Automatic, Multifunctional, Competitive Price, High-Accuracy, High Safety Level, Energy Saving, Sustainable, High Productivity, Easy To Operate, Flexible Manufacturing

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where to provide local services (in which countries are there overseas service outlets): None

Showroom location (in which countries are there sample rooms overseas): None

Applicable industry: Manufacturing Plant

Marketing type: Hot Product 2019

Mechanical test report: Provided

Video factory inspection: Provided

Core component warranty period: 1 Year

Core components: Motor, Gear

Customized: Yes

Certification: CE

Precision: High Precision

Condition: New

Warranty: 12 Months

Automatic Grade: Automatic

Installation: Desktop

Driven Type: Electric

Supply Ability & Additional Information

Packaging: Standrad

Productivity: 2Sets/Month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 200Sets/Year

Certificate: ISO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Standrad

HT-420C(customized) is same as the HT-420 (standard) on its application. The customer may assign travel range and working table for the model. HT-420C( customized) makes foam profiled @ 8-30mm width with HT600 blender.

Foam Sealing Machine Working Principle:

1.Mixing time:The time when components A and B are mixed
2.Reaction time: The time when the foam begins to react with each other (about 15-60 seconds later)
3.Foaming time: The time when the volume starts to expand and then foams into seals (about 15-180 seconds later)
4.Drying time : Sealing strip at room temperature (25 ºC) under the condition of its surface has no sticky, and not damage to the surface after hitting time (about 2-20 minutes later)
5.Available time:The time when the seal can be compressed or the parts can be assembled (about 20-12 hours later)

Foam Sealing Machine Advantages:
1. Temperature holding system- no need air conditioner room
2. Tapping water cleaning system-no need chemical cleaning liquid
3. Patented Anti-blocking gluing nozzle-no need extra nozzle cleaning expense

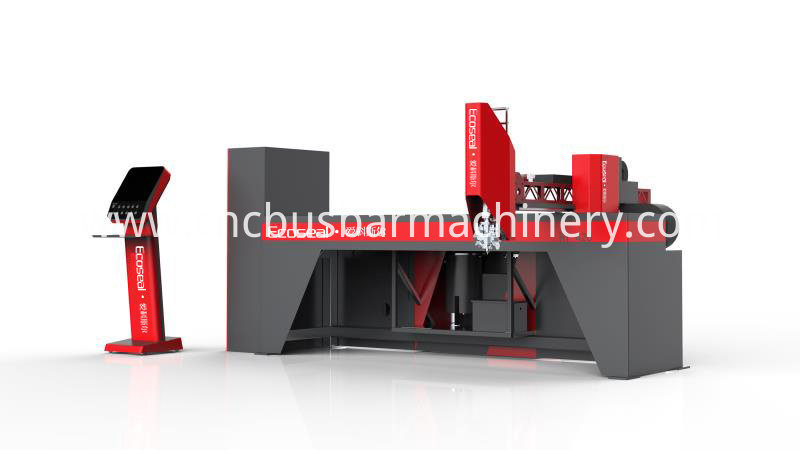

PU Foaming sealing machine

Foaming Machine HT-420S Technical Specifications:

Type	Type	HT-420 (Standard)	HT-420C (Customized)	HT-420HC (High Standard)	HT-420Silicagel (Standard)	HT-321 (Standard)	HT-321HC (high Standard)
Composition	Composition	polyurethane	polyurethane	polyurethane	silicagel	polyurethane	polyurethane
Composition	Options	Dual	Dual	Dual	Dual	Dual	Dual
System /Control	OS	HT-420 /WindowsXP	HT-420 /WindowsXP	HT-420 /WindowsXP	HT-420 /WindowsXP	HT-321 /WindowsXP	HT-321 /WindowsXP
	Interface	TS	TS	TS	TS	TS	TS
	Operation	TS/KB/BT	TS/KB/BT	TS/KB/BT	TS/KB/BT	TS/KB/BT	TS/KB/BT
	Control	INVT	INVT	INVT	INVT	INVT	INVT
	Screen	15"	15"	15"	15"	15"	15"
Blender	Blender	HT600	HT600	HT600	HT625	HT500	HT500
	Width of Sealant	8-30mm	8-30mm	8-30mm	8-30mm	2-10mm	2-10mm
	Cleaning Method	High Pressure Water	High Pressure Water	High Pressure Water	Solvent	High Pressure Water	High Pressure Water
	Mixing Scale(A:B)	10:1	10:1	10:1	1:1	10:1	10:1
Dosing Pump	Dosing Pump	Barmag	Barmag	Barmag	Barmag	Barmag	Barmag
Dosing Pump	Size	A3cc/r B0.6cc/r	A3cc/r B0.6cc/r	A3cc/r B0.6cc/r	A1.2cc/r B1.2cc/r	A0.6cc/r B0.1cc/r	A0.6cc/r B0.1cc/r
Size/ Travel	Size(LWH)	4100×2700×2100mm	Customized	3700×2700×2100mm	4200×2700×2100mm	2000×1800×1900mm	2000×1800×1900mm
Size/ Travel	Travel(XYZ)	2300×1250×200mm	Customized	2300×1250×200mm	2300×1250×200mm	1000×8000×200mm	1000×8000×200mm
Material Tank	Structure	Air Pressure Tank	Air Pressure Tank	Air Pressure Tank	Air Pressure Tank/Pressure plate pump tank	Air Pressure Tank	Air Pressure Tank
	Volume	A=40L B=40L	A=40L B=40L	A=40L B=40L	A=40L B=40L	A=40L B=40L	A=40L B=40L
	Agitation	Only A	Only A	Only A	defoaming	Only A	Only A
	Feeding	Hand/ Auto	Hand/ Auto	Hand/ Auto	Hand/ Auto	Hand/ Auto	Hand/ Auto
	Feeding Station	Option	Option	Option	Option	Option	Option
	Inflation	Hand/ Auto	Hand/ Auto	Hand/ Auto	Hand/ Auto	Hand/ Auto	Hand/ Auto
Frame	Structure	Three axis linear manipulator	Three axis linear manipulator	Three axis linear manipulator	Three axis linear manipulator	4 axis linear manipulator (Gantry)	4 axis linear manipulator (Gantry)
	Travel Speed	0-250mm/s	0-250mm/s	0-250mm/s	0-250mm/s	0-250mm/s	0-250mm/s
	Guide Rail	HIWIN	HIWIN	THK	HIWIN	HIWIN	HIWIN
	Gear Rack/lead Screw	China mainland made	China mainland made	Gabini	China mainland made	HIWIN	HIWIN
	Servo Motor	Panasonic	Panasonic	YASKAWA	Panasonic	Panasonic	Panasonic
	Reducer	China mainland made	China mainland made(cantilever)	Mordor	China mainland made	─	─
Working Table	Structure	ALU Extrusion	ALU Extrusion	alternate/up-down/customized	ALU Extrusion	unibody	unibody
Working Table	Size	2000×1000mm	2000×1000mm	2000×1000mm	2000×1000mm	2000×1000mm	2000×1000mm
Power	Power	3×380V	3×380V	3×380V	3×380V	3×380V	3×380V
Power	Power Rate	5.5kw	5.5kw	5.5kw	5.5kw	5kw	5kw
Air	Dry Compressed Air	≥6bar	≥6bar	≥6bar	≥6bar	≥6bar	≥6bar
Water	Clean city Water	tap water	tap water	tap water	─	tap water	tap water
Solvent	Solvent	─	─	─	Solvent	─	─
Application		Cabinets/Filter/Auto/Electronics …	Cabinets/Filter/Auto/Electronics …	Cabinets/Filter/Auto/Electronics …	Cabinets/Filter/Auto/Electronics / electric heating machine	Filter/Auto/Electronics …	Filter/Auto/Electronics …

The Produced Samples By Foam Sealing Machine:

The Producted Samples By Foam Sealing Machine 1

Certifications & Patents For Our Foam Sealing Machine:

Certifications & Patents of Foam Sealing Machine

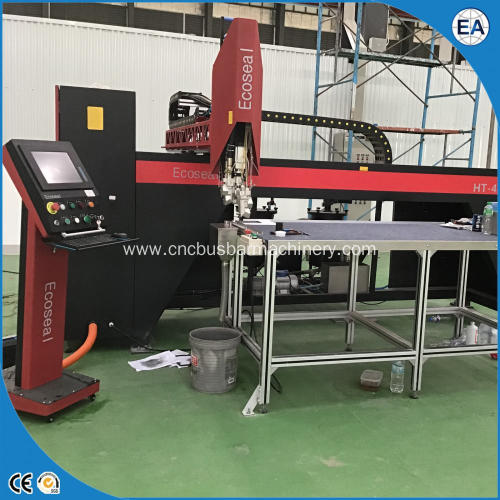

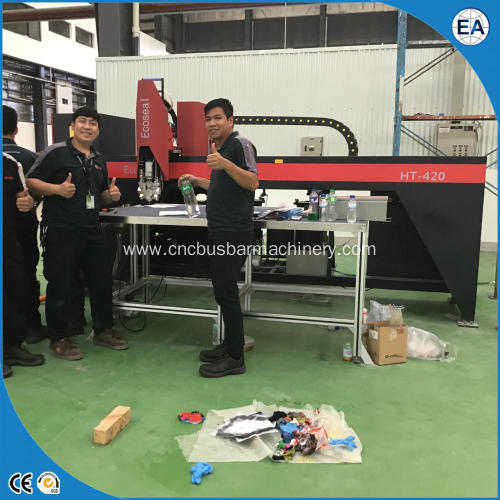

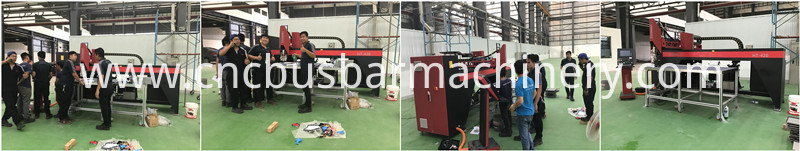

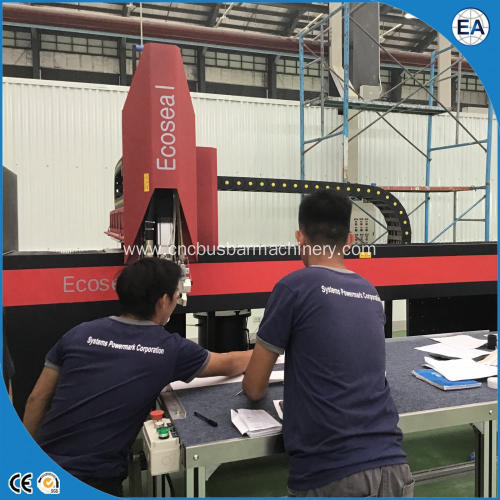

Customer factory installation pictures:

Our Service For Foaming Machine:

1.Inquiry will be replied within 2 hours.

2. All the way tracking service offered from placing order to delivery.

3.We can provide professional guide installation.

4.One year warranty and all round after sale service.

5.Customized design and flow chart are available for our clients.

6.Independent R&D; team and strict & scientific management system.
