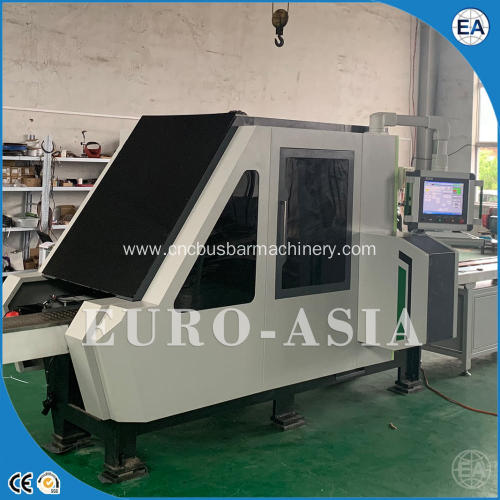

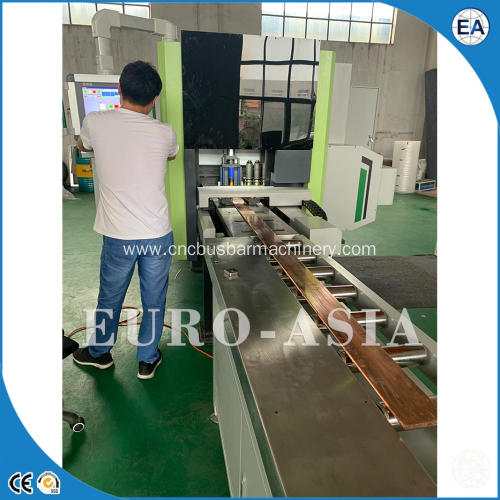

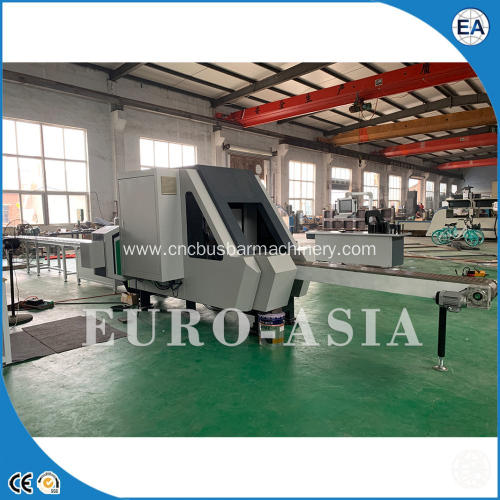

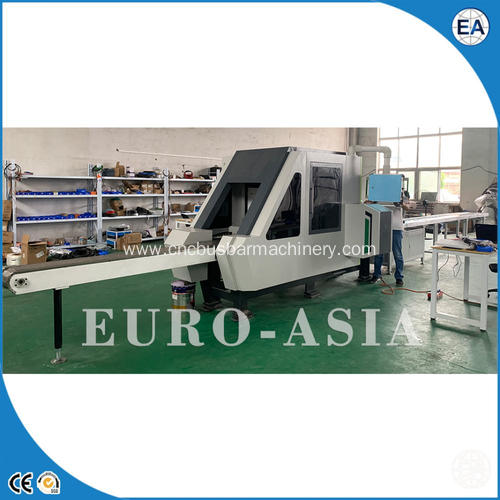

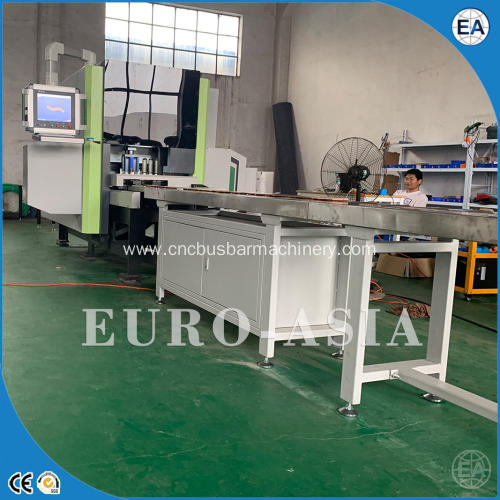

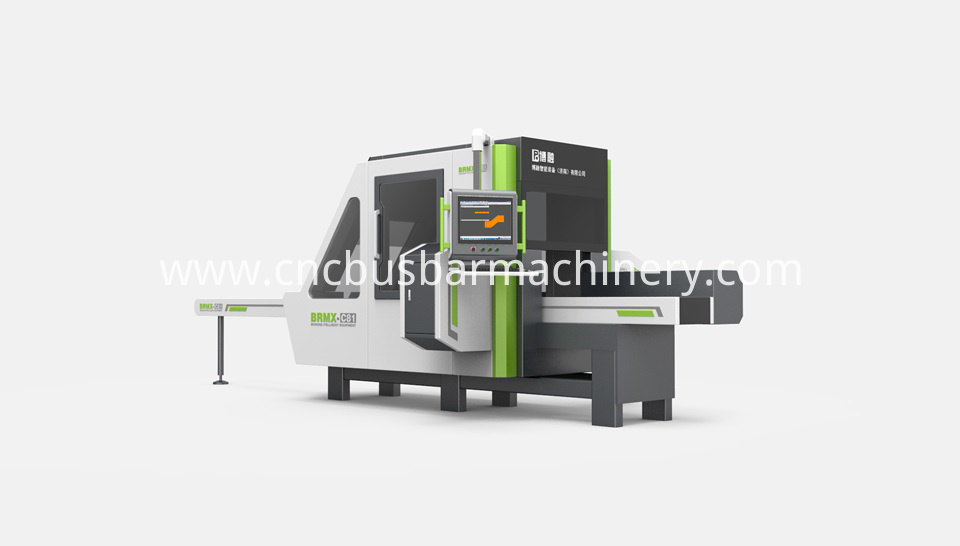

New 3D Intelligent Busbar Punching and Shearing Machine

$10000

1-0
Piece/Pieces
$30000

≥1
Piece/Pieces

Payment Type:

L/C,T/T,D/P

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Piece/Pieces

Transportation:

Ocean

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: BRMX-BP-40/60

Brand: EA

Certification: CE

Suitable for: Aluminum

Condition: New

Automation: Automatic

Type: Cnc Bending Machine

Supply Ability & Additional Information

Packaging: Seaworthy package

Productivity: 20pcs/month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 20pcs/month

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Seaworthy package

Advantages :

1. Whole Assembled Shipment . No need On-Site Installation and commission !
Customer can start to operate it in very easy way !

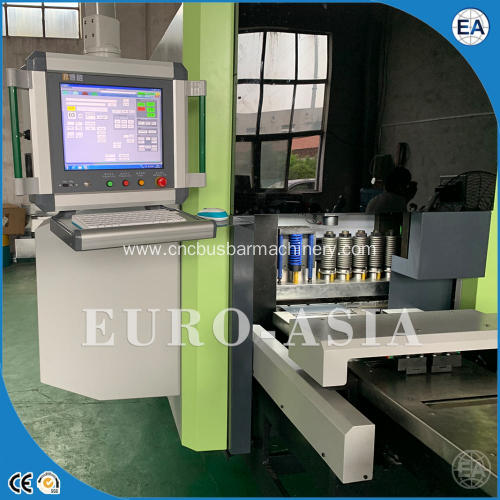

2. Windows All in One Touch Screen Computer
3. Upgraded 3D Busbar Design Software Read Solid works and Auto CAD Drawing
file directly
4. Internet and Ready for your Industry 4.0

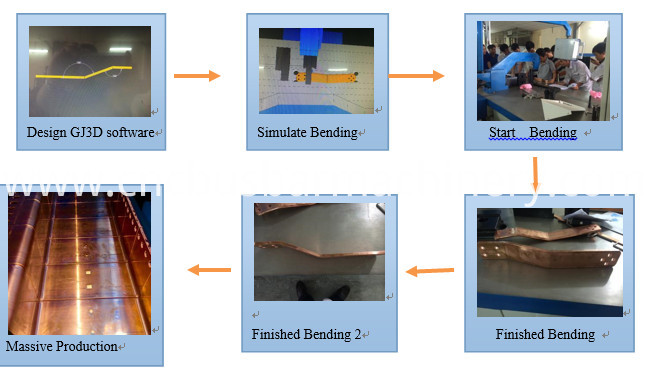

Working Flow:

Control Section
Serial No.	Name	Instruction
1	Programmable Control	OMRON/Schneider
2	Sensor	Schneider
3	Control Button	OMRON
4	Touch Screen	OMRON
5	Computer	Lenovo
6	AC Contactors	ABB
7	Circuit Breaker	ABB
8	Servo Motors	YASKAWA(Japan) or Schneider
9	Servo Drivers	YASKAWA(Japan) or Schneider
10	Control software and Three-dimensional	Gaoji Busbar Processing System(GJ3D)
10	computer-aided design	Gaoji Busbar Processing System(GJ3D)
Transmission System
Serial No.	Name	Illustration
1	Precision Linear Guide Rail	Taiwan HIWIN
2	Precision Ball Screw Cylinder	Taiwan HIWIN
3	Bearing	Japan NSK
Hydraulic Section
Serial No.	Name	Illustration
1	High Pressure Electromagnetic valve	Italy
2	High Pressure Tube	Germany Rivaflex
3	High Pressure Oil Piston Pump	Rexroth

Technical parameter
Name			Unit	Parameter
Punching Unit		kN	500
Shearing Unit		kN	500
Embossing Unit		kN	500
Max position Speed of X-axis			m/min	48
Max Stroke of X-axis			mm	2000
Max effective of Y-axis			mm	530
Max Stroke of Z-axis			mm	350
Stroke of striking Cylinder			mm	45
max hit speed			HPM	100
number of die station	Punching Die		set	7
	Shearing Die		set	1
Control Axis				3
Hole Pitch Accuracy			mm/m	±0.20
Max hole punch size			mm	Φ32( Thickness
				of Copper bar <12mm)
Max Allowable sheet dimension(LWH)			mm	6000×200×15
Total power			kw	15.7
main machine dimension:L*W			mm	7500X2980
Total weight			kg	7600

3D Drawing Software (Bus bar Design to Finished Piece At one Time)
Auto Compensation System
Fast but Energy Saving!
High Efficiency!

Looking for ideal Busbar Punching Machines Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the CNC Cuting Shearing machine are quality guaranteed. We are China Origin Factory of CNC Intelligent Machine. If you have any question, please feel free to contact us.
