Purpose of the product:

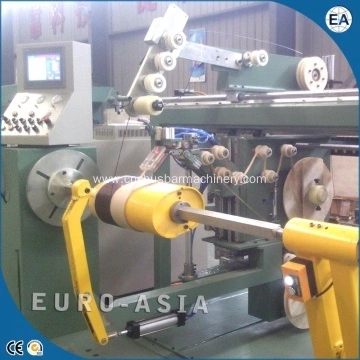

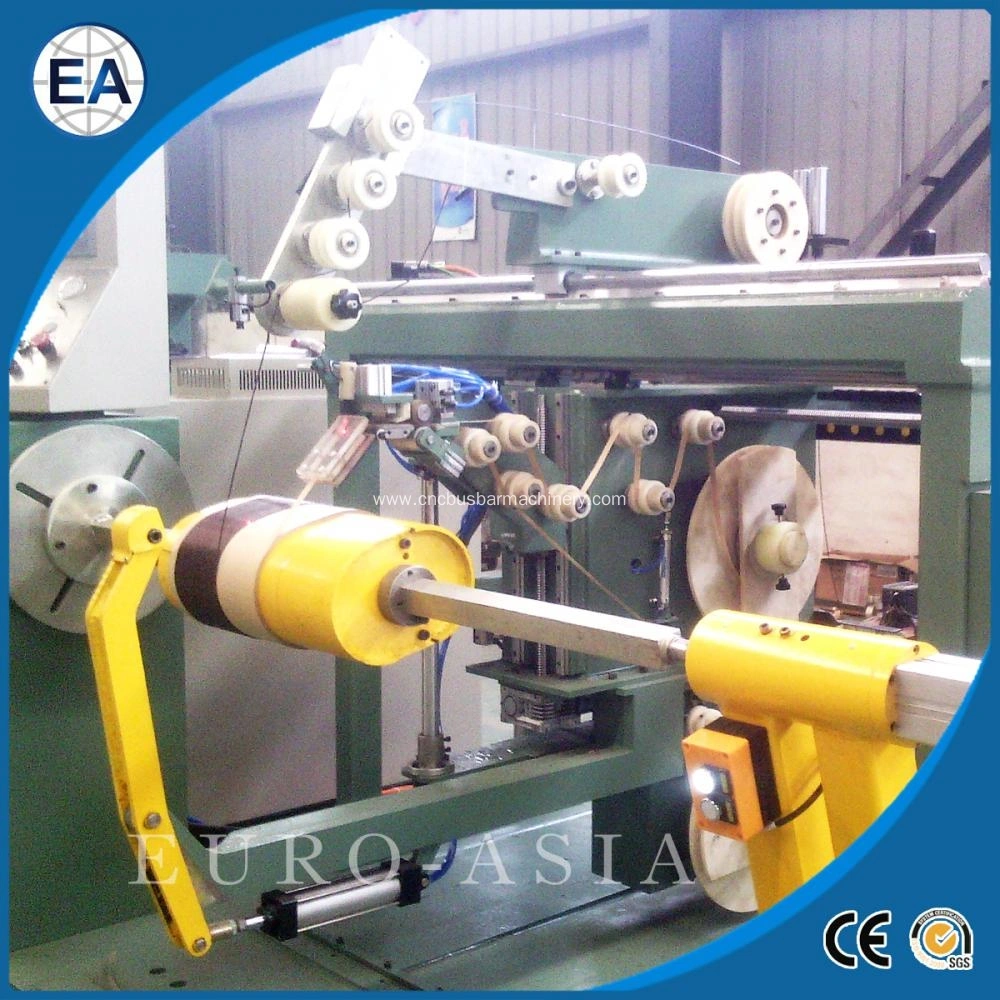

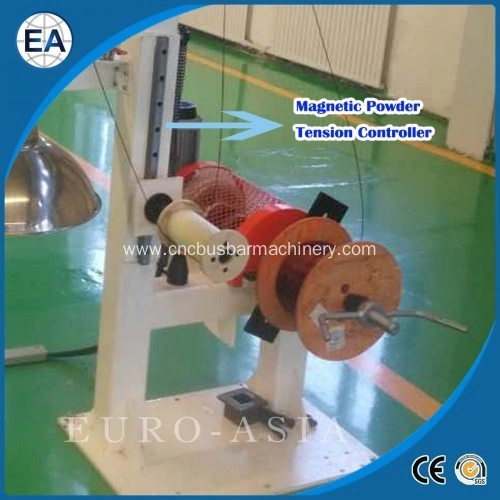

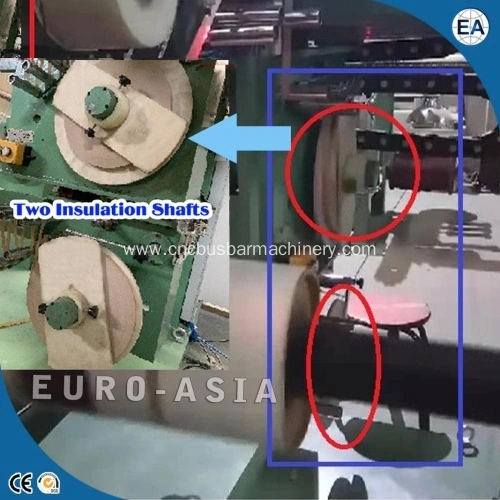

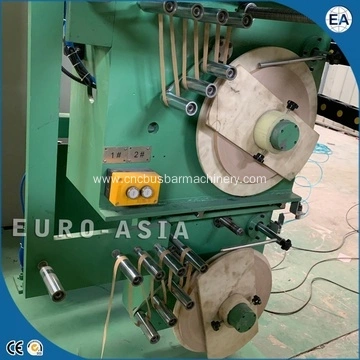

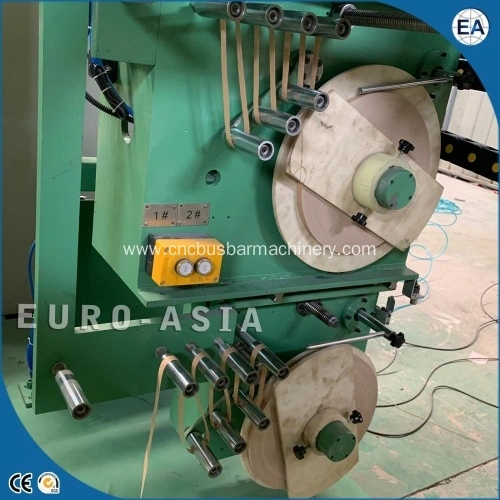

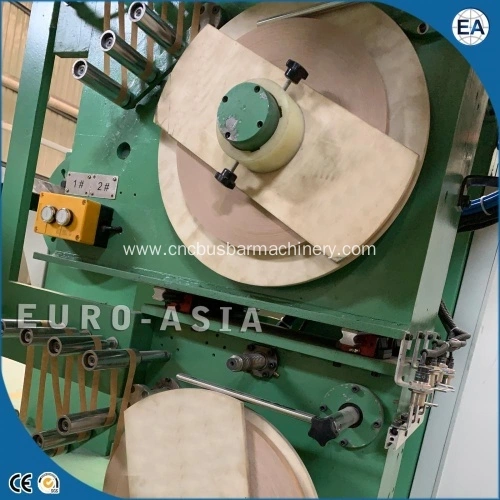

Automatic high voltage wire Winding machine is specially designed for winding coil of medium and small distribution transformer, instrument transformer and reactors. It is also suitable to wind HV coil of amorphous core transformer.
High voltage winding machinery is the most advanced winding machine, which is designed as insulation requirement of ABB and SIEMENS transformer production program, bringing in the latest technology of B&R; and TOBOLY and combining with our newest designing thoughts as well experience. It is the most optimum choice to improve to efficiency and reduce the material cost using automatic winding machinery.
Main parts list
| Inverter | Delta |
| Servo system | Delta |
| PLC | Siemens |
| Touch screen | Siemens |
| LV components | Schneider |
| Pneumatic components | Japan SMC |
| Linear rail | Taiwan HIWIN |
Main Technical parameter
Model
Paramet | ZRX-600 | ZRX-800 | ZRX-1100 |
| Height of the coil | ≤500mm | ≤800mm | ≤1100mm |
| Outer diameter of the coil | ≤¢600mm | ≤¢800mm | ≤¢900mm |
| Inner diameter of the coil | ≥¢80mm | ≥¢80mm | ≥¢80mm |
| Speed regulation mode | Stepless variable speed | Stepless variable speed | Stepless variable speed |
| Operating speed | 0-375r/min | 0-375r/min
220r/min | 0-375r/min
220r/min |
| Wire specification | 2 flat conductors≤3*12mm
Lacquered Wire:0.3mm-3mm | 2 flat conductors≤3*12mm
Lacquered Wire:0.3mm-3mm | 2 flat conductors≤3*12mm
Lacquered Wire:0.3mm-3mm |
| Operating torque | ≤300N/M | ≤300N/M | ≤300N/M |
| Center height | 850mm | 850mm | 850mm |
| Center-to-center distance of reel | 250-800mm | 250-1100mm | 400-1300mm |
| Electrical control system | Touch screen | Touch screen | Touch screen |
| Winding reel | Square shaft 40*40 | Square shaft 40*40 | Square shaft 50*50 |
| Rectangular coil diagonal length | ≤700mm | ≤900mm | ≤1100mm |
| Workpiece weight | ≤500KG | ≤800KG | ≤1000KG |
| Automatic wire aarraying function | Min. Space of wire diameter adjustment 0.01mm | Min. Space of wire diameter adjustment 0.01mm | Min. Space of wire diameter adjustment 0.01mm |
Packing details
1) Applying Anti-Rust Oil
2) Covering with stretch film
3) Covering aluminum air bag
4) Vacuuming air bags
5) Boxing all the pallet
6) Loading to the container
Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D; team and strict & scientific management system.
Looking for ideal Automatic Winding Machinery Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Automatic Foil Winding Machinery are quality guaranteed. We are China Origin Factory of High Voltage Winding Machinery. If you have any question, please feel free to contact us.
