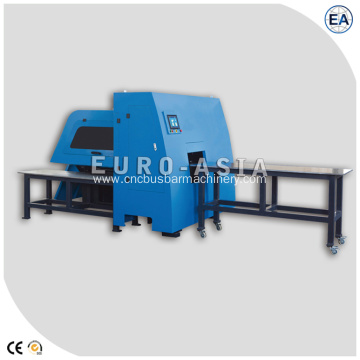

Automatic Busbar Punching And Shearing Machinery
  • Automatic Busbar Punching And Shearing Machinery
  • Automatic Busbar Punching And Shearing Machinery
  • Automatic Busbar Punching And Shearing Machinery
  • Automatic Busbar Punching And Shearing Machinery
  • Automatic Busbar Punching And Shearing Machinery
  • Automatic Busbar Punching And Shearing Machinery
  • Automatic Busbar Punching And Shearing Machinery

Automatic Busbar Punching And Shearing Machinery

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF,EXW
Min. Order:
1 Set/Sets
Transportation:
Ocean
Share:
Chat Now
  • Product Description
< >
Overview
Product Attributes

Model No.: EMAC-BP

Brand: Euro-Asia

Type: High-Speed Punching Machine

Punch Shape: Semi-Open Punch

Slider Movement: Double Action

Slider Drive Mechanism: Screw Press

Controlling Mode: CNC

Automatic Grade: Automatic

Power Source: Hydraulic Pressure

Precision: High Precision

Certification: ISO 9001

Condition: New

Precision Ball Screen: Taiwan Hiwin

Supply Ability & Additional Information

Packaging: Seaworthy packing

Productivity: 20Sets/Month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 200Sets/Year

Certificate: ISO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Seaworthy packing
Advantages:
1. CNC Busbar Punching and Shearing Machine 3D software--This is our independent patent in busbar processing, which can realize 3D automatic programming and dynamic simulation.

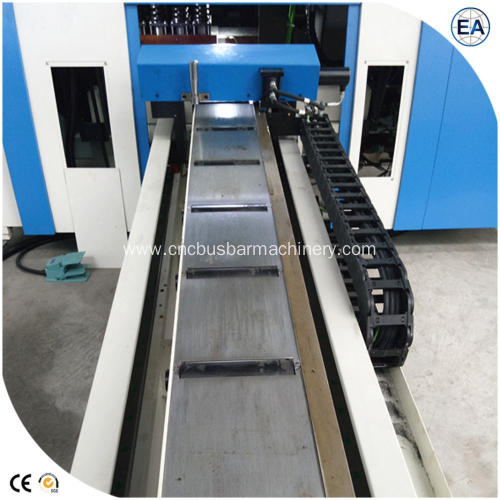

2. Double clamps of CNC Busbar Punching Machine--Comparing other single clamp, double clamps can make processing more accurate and stable.
3. Hydraulic system of CNC busbar punching machine-- Piston pump (rather than gear pump) has large drive power and realize high efficiency.

4. Main components of CNC busbar punching machine--Imported, so the quality and service life can be guaranteed.




Main techincal parameters

Technical parameter
Description Unit Parameter
Press Force Punching Unit kN 500
Shearing Unit kN 500
Embossing Unit kN 500
X Max Speed m/min 60
X Max Stroke mm 2000
Y Max Stroke mm 530
Z Max Stroke mm 350
Stroke of Hit Cylinder mm 45
Max hit speed HPM □120 □150
Tool Punching Mould set □6 □8
Shearing Mould set □1 □2
Embossing Mould set □1
Control Axis □3 □5

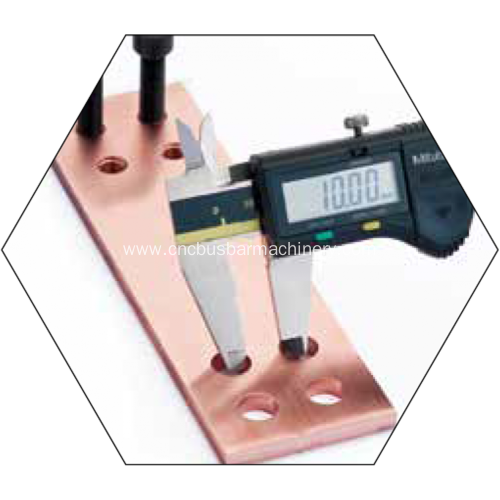

Hole Pitch Accuracy mm/m ±0.20

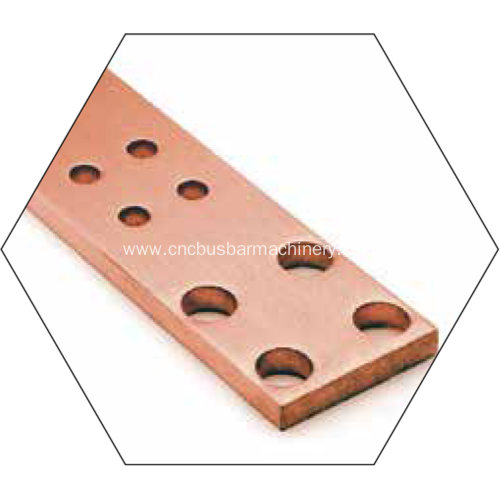

Max hole punch size mm Φ32( Thickness of Copper bar <12mm)
Max embossing area mm² 160×60
Max Allowable sheet dimension(L*W*H) mm 6000×200×15
Total power kw 14
main machine dimension:L*W mm 7500X2980
Total weight kg 7600

Packing details:

Packaging Shipping


Exhibition show




Looking for ideal Sheet Metal Punch Press Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Hydraulic Metal Punch are quality guaranteed. We are China Origin Factory of Metal Punch Press. If you have any question, please feel free to contact us.
