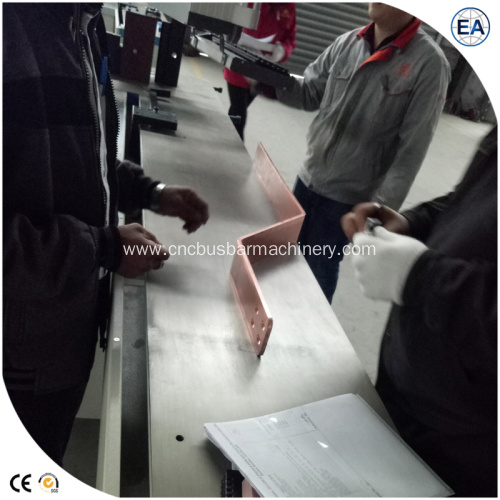

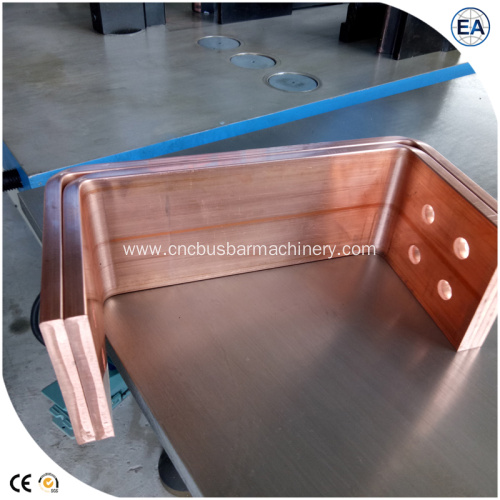

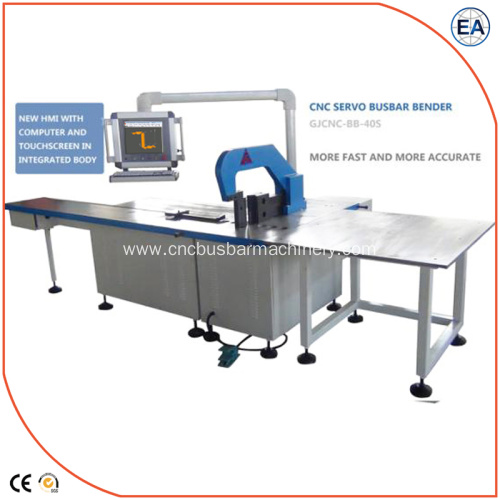

Busbar Servo Bending Machinery

Get Latest Price

Min. Order:

1 Set/Sets

Transportation:

Ocean

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: CNC-BB-S

Brand: Euro-Asia

Machinable material: Brass / Copper, Aluminum

Old and new: New

place of origin: China

degree of automation: Automatic

Additional features: Swaging

Certification: Ce, CE

warranty period: 1 Year

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Core selling point: Flexible Manufacturing

Applicable industry: Machinery Repair Shops, Manufacturing Plant

Where to provide local services (in which countries are there overseas service outlets): None

Showroom location (in which countries are there sample rooms overseas): None

Marketing type: Hot Product 2019

Mechanical test report: Provided

Video factory inspection: Provided

Core component warranty period: 1 Year

Core components: Motor, Pump, Gear, Plc, Engine, Gearbox

Suitable for: Aluminum

Condition: New

Automation: Automatic

Type: Hydraulic Bending Machine

Total Power: 7.2KW

Total Weight: 2700KGS

Nominal Force: 400KN

Max Bending Stroke: 250mm

Stroke Of Side Striker: 2000mm

Supply Ability & Additional Information

Packaging: Seaworthy packing

Productivity: 20Sets/Month

Transportation: Ocean

Place of Origin: Shandong, China

Supply Ability: 200Sets/Year

Certificate: ISO

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Seaworthy packing

Products Description:
1.. CNC Busbar Bending Machine possesses the premium property of the closed type bending.
2. The bend unit (Y-axis)of CNC Busbar Bending Machine has the function of angle error compensation, its bending accuracy can meet the high performance norm.

3. When automatic CNC busbar bending machine is in vertical bending, the machine has the function of auto clamping and release, the processing efficiency is greatly improved compared with manual clamping and release.

4. Busbar Servo Bending Machinery adopts unique large closed type bending structure.
5. Automatic CNC busbar bending machine also has the convenience of the open type bending.

Advantages:
1.Closed Bending Structure of the CNC busbar bending machine--Using a precision linear guide to ensure fabricating accuracy.
2.GJ3D Software Programming --Accurately calculating the punching position by 3D graphics.
3.Touch Screen -- Allowing the easy setting of die parameters and the operation of equipment.

4. High-Speed-- Operation System Guarantee high precision and fast efficiency.

Busbar Bending Machinery

Main technical parameter:

Specification:

Item	Unit	Parameter
Nominal Force	KN	400
Bender Accuracy	Degree	±0.3°
Max bending Stroke	mm	250
Stroke of side striker	mm	2000
Max Moting Speed of Side striker(X Axis)	m/min	15
Bending Head(Y Axis)	m/min	Fastest 5; low: 1.25

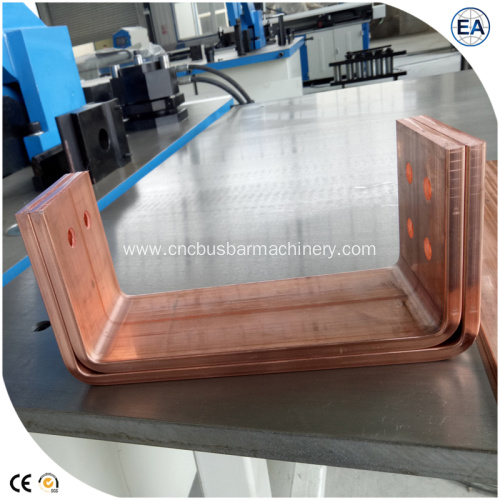

Min inner Width of U-shape bend	mm	40(Note:Please consult us for smaller dimensions)
Max bending angle	degree	90
Level bending (W*H)	mm	200X15
Vertical Bend(W*H)	mm	125×15
Total power	kw	7.2
Main machine dimension:L*W	MM	4150X1590
TOTAL Weight	kg	2700

Configuration:

Control Section
Serial No.	Name	Brand Name
1	Programmable Control	OMRON
2	Sensor	Telemacanique From Schneider
3	Control Button	OMRON
4	Touch Screen	OMRON
5	Computer	Lenovo
6	AC Contactors	ABB
7	Circuit Breaker	ABB
8	Servo Motors	YASKAWA(Japan)
9	Servo Drivers	YASKAWA(Japan)
10	Control software and Three-dimensional	Gaoji Busbar Processing System(GJ3D)
10	computer-aided design	Gaoji Busbar Processing System(GJ3D)
Transmission System
Serial No.	Name	Brand Name
1	Precision Straight rail	Taiwan HIWIN
2	Precision Ball Screw	Taiwan HIWIN
3	Bearing	Japan NSK

Packing details

1) Applying Anti-Rust Oil

2) Covering with stretch film

3) Covering aluminum air bag

4) Vacuuming air bags

5) Boxing all the pallet

6) Loading to the container

Looking for ideal Busbar Bending Machinery Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the High Quality Bending Machine are quality guaranteed. We are China Origin Factory of Good Quality Bending Machine. If you have any question, please feel free to contact us.
